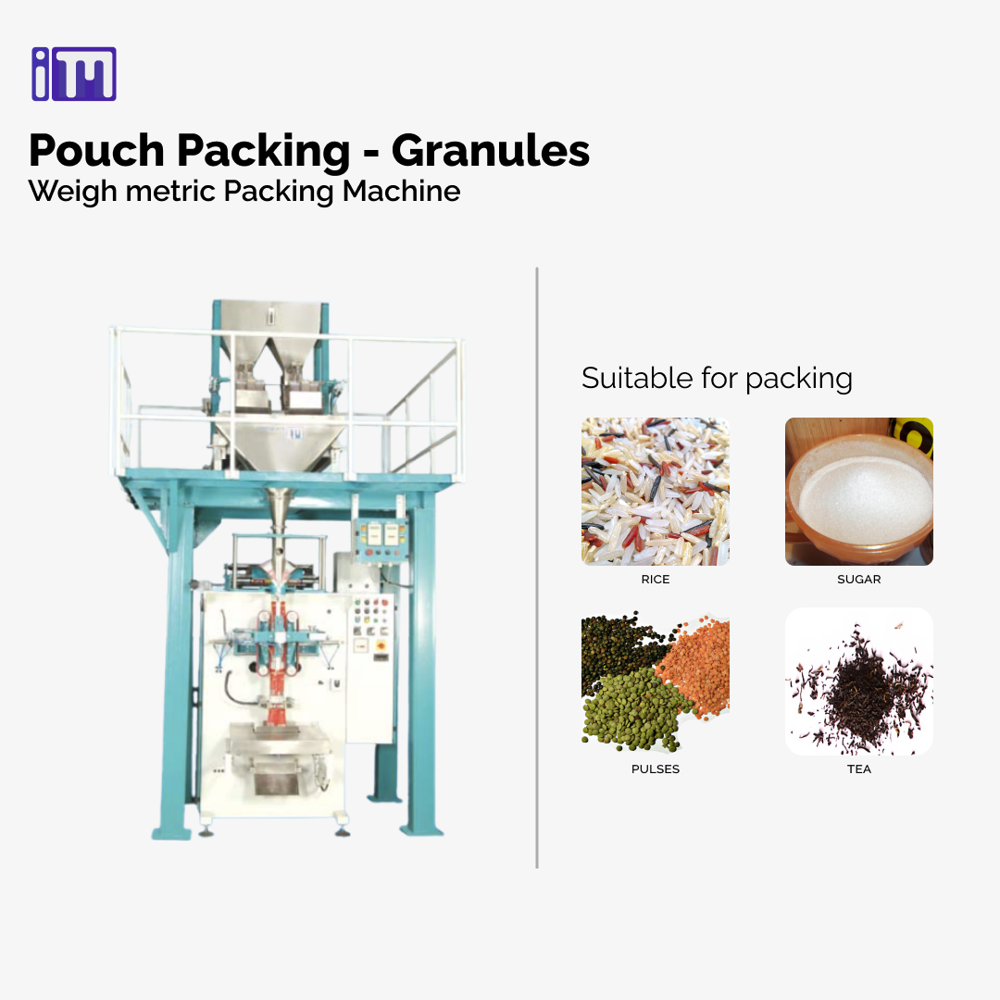

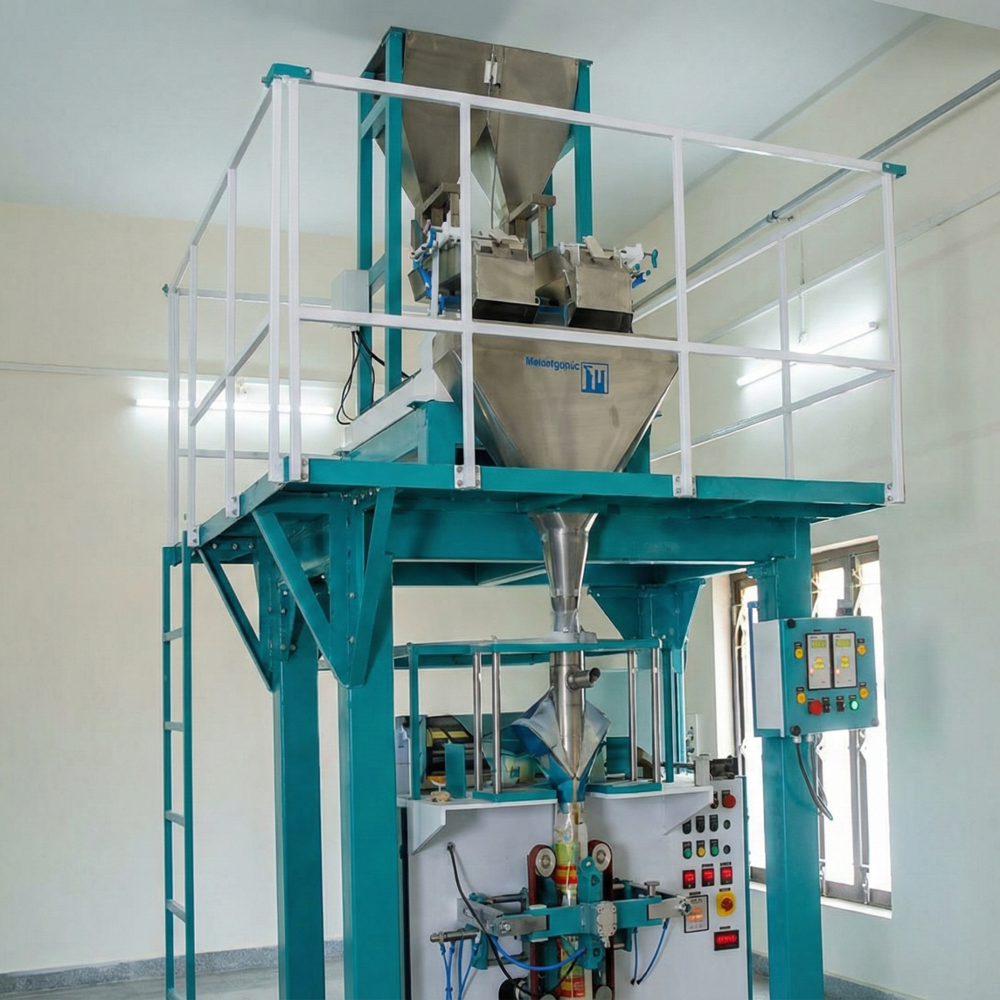

About Granules Packing Machine
A Granules Packing Machine is a type of packaging equipment specifically designed to efficiently and accurately pack granular or free-flowing materials into bags, pouches, or containers. These machines are commonly used in industries such as food, pharmaceuticals, chemicals, and agriculture, where granular products need to be packaged in a controlled and automated manner. Granules Packing Machine can accommodate various types of packaging, including bags, pouches, sachets, or containers.
Features of Granules Packing Machine
- Twin Heeds Machine for Space Saving & High Output
- Volumetric filling machine suitable for filling granular & free flowing products.

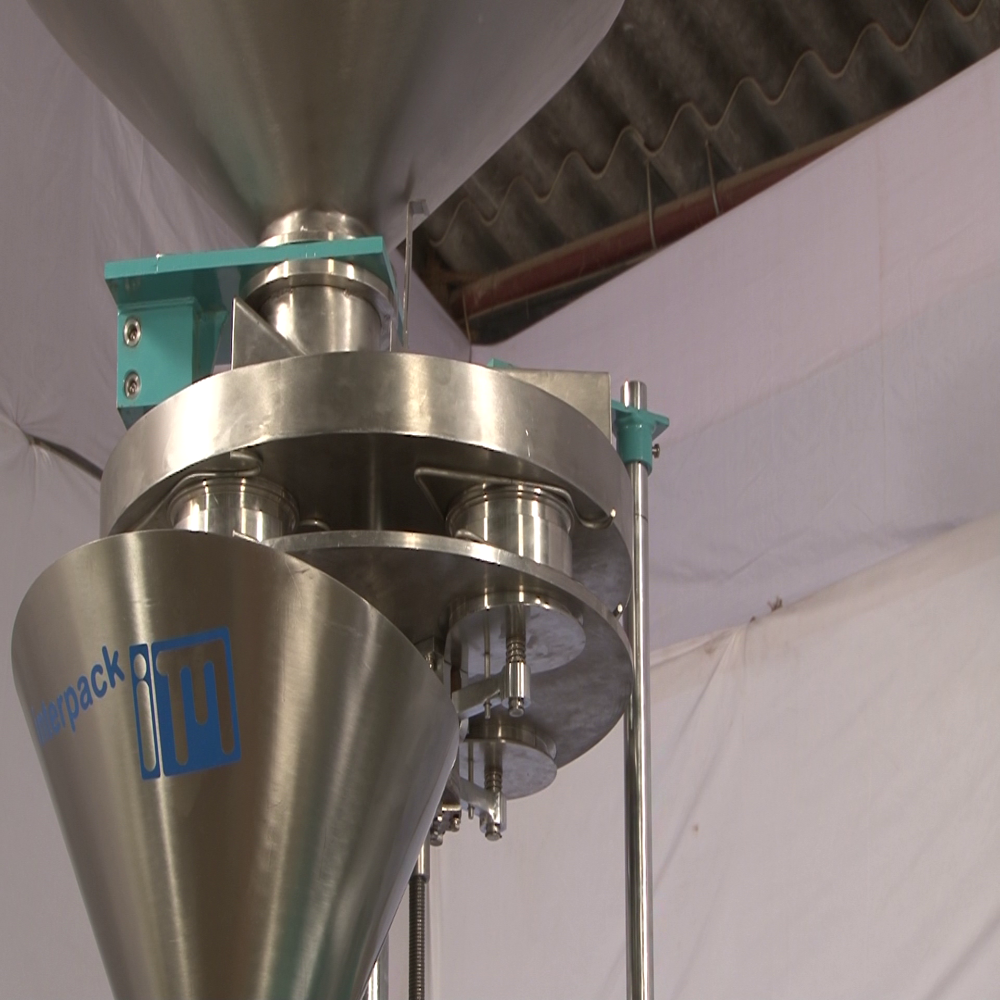

- Consists of a set of rotating discs between which 4-sets of telescopic cups are fitted.
- Driven by geared motor with variable frequency drive for control.
- With small storage hopper of approx. 30-L capacity.
- Adjustable cup volume up to +/- 15% with same cup size parts due to telescopic cup design.
- MS Construction with product contact parts in SS-304.
- OPTIONAL: Extra cup size parts for filling different quantities.
Specifications
| Automation Grade | Automatic |
| Voltage | 415 V |
| Power Consumption | 4.50 kW |
| Machine Dimension | 1200 (W) X 1930 (D) X 2680 (H) mm |
| Frequency | 50 Hz |
| Material | Mild Steel |
| Packing Material | Heat Sealable Laminates. |
| Country of Origin | Made in India |
| Grammage | Upto 500 g |
| Pouch Width (max) | 200 mm |
| Pouch Length (max) | 320 mm |
| Open Reel Width (max) | 425 mm |
| Speed | 30 to 50 PPM |
| Air consumption @ 6 bar | 15.90 CFM |
| Machine Construction | Ms Painted Body, Ss Product Contact Parts. |
Efficient and Automated PackingThis semi-automatic granules packing machine combines automation with smart PLC control systems, ensuring consistent packing quality for a range of granular products. Its computerized setup makes operations simple and minimizes manual intervention.
Energy-Saving OperationDesigned to consume less power, this granules packing machine helps businesses reduce operational costs without sacrificing performance. Its efficient electric drive system is ideal for continuous use in busy production environments.
FAQs of Granules Packing Machine:
Q: How does the PLC control system benefit the granules packing process?
A: The PLC control system automates key functions, enhancing accuracy and consistency in packing. It also helps reduce manual errors and allows easy customization for different granule types, streamlining the overall production process.
Q: What types of industries can use this gluing granules packing machine?
A: A wide range of industries dealing with granular productssuch as food processing, pharmaceuticals, agriculture, and chemicalscan benefit from this machine, especially where precision and lower power consumption are priorities.
Q: When is it advantageous to choose a semi-automatic over a fully automatic packing machine?
A: A semi-automatic machine is ideal when moderate automation suffices, budget constraints exist, or when production volumes do not necessitate fully automatic systems. It allows flexibility and easier manual intervention when needed.
Q: Where can businesses in India source this granules packing machine?
A: Businesses can procure this machine through authorized distributors, importers, manufacturers, suppliers, service providers, and traders located throughout India, ensuring availability across diverse regions.
Q: What is the typical process for using this machine to pack granules?
A: The operator feeds granules into the hopper, sets packaging parameters via the computerized PLC interface, and initiates the packing cycle. The machine applies glue and seals the package efficiently with minimal manual input.
Q: How is the machines lower power consumption beneficial for users?
A: Lower power consumption translates to reduced energy costs over time, making this machine an economical choice for long-term, high-frequency operations. It also supports eco-friendly business practices by minimizing energy usage.
